What is the purpose of a boring bar tool holder?



A boring bar tool holder, also called a holder boring tool, is a tool used in metalworking. It's primarily used to mount and fix the boring bar/boring head, helping to achieve rough and finish boring of workpiece internal holes. Its core function is to provide stable clamping, precise positioning, and efficient cutting posture for the boring tool, and it's also a key component determining the accuracy and efficiency of internal hole machining. It is widely compatible with CNC lathes, machining centers, and milling-turning machines.

Key features of a tool holder for boring bars:



1. High precision: The boring bar tool holder enables high-precision hole machining, suitable for demanding engineering applications.



2. Adjustability: The boring bar tool holder is designed with an adjustable tool position, allowing flexible adjustments according to different workpiece sizes and hole diameters.

3. Versatility: It can be used for machining various materials, including metals, plastics, and composite materials.



4. Modular Design, Combining Versatility and Economy

The same tool holder can be fitted with different specifications of boring bar/head, covering machining of multiple hole diameters, reducing the variety of tool types in inventory; the tool holder body can be reused for a long time, requiring only the replacement of inserts/heads, reducing overall procurement costs.

There are many types of boring tool holders, which are the "basic carrier" for internal hole machining. Their performance directly determines the accuracy and efficiency of the boring process. Below is a selection comparison table for boring tool holders (examples from JOJO's product classification). You can make a selection and use according to your workpiece conditions and application scope, making appropriate choices and further selecting according to the classification:

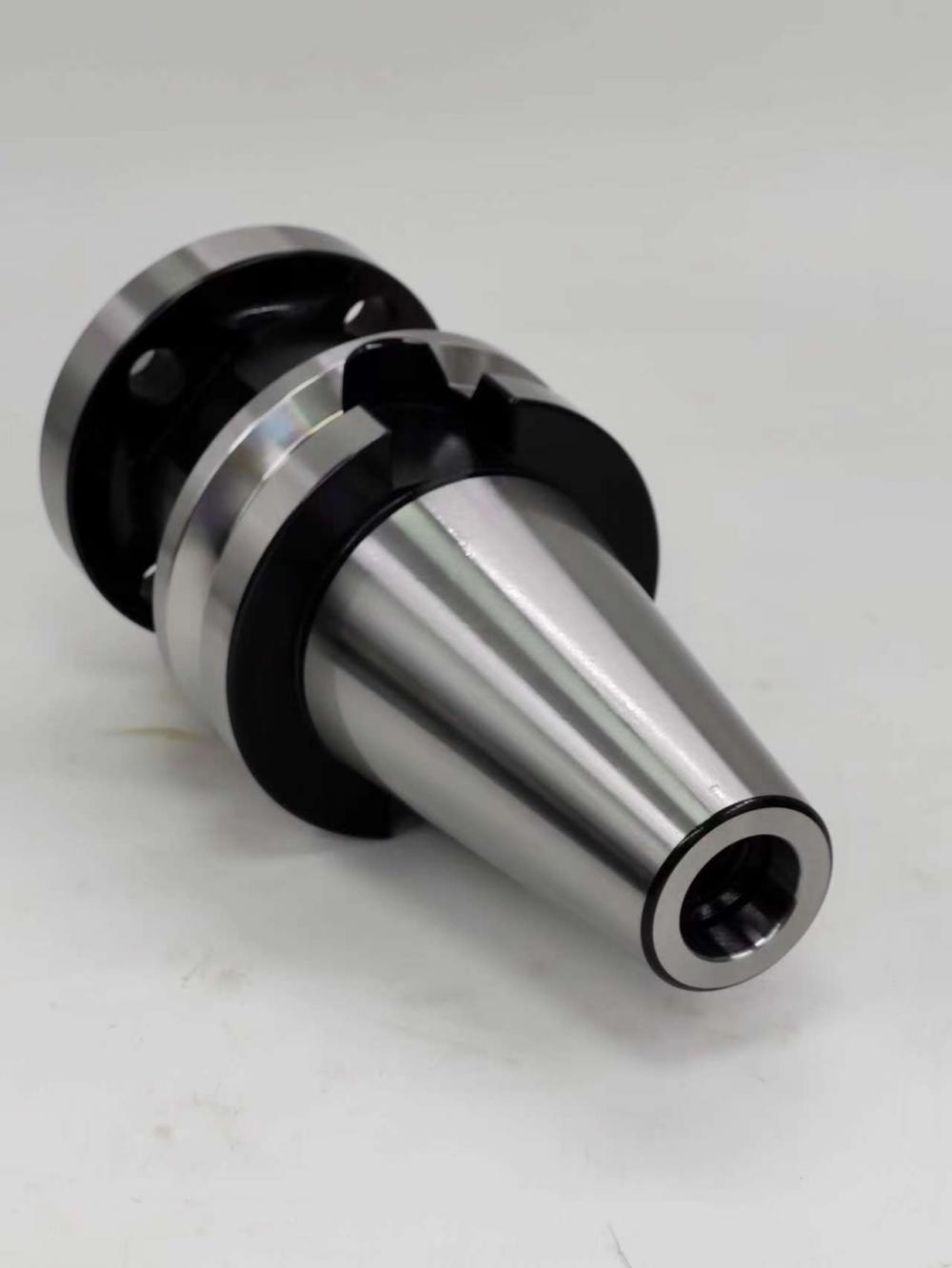

1: BT Tool Holder For Boring

What is a BT boring tool holder? It is a tool that allows boring tools of various sizes and types to be mounted on the machine tool spindle for machining operations.

2. SK Boring Tool Holder:

SK boring tool holders are one of the commonly used accessories in precision machine tool machining. SK (Schunk) tool chucks are renowned for their high precision and are suitable for applications requiring extremely high machining accuracy.

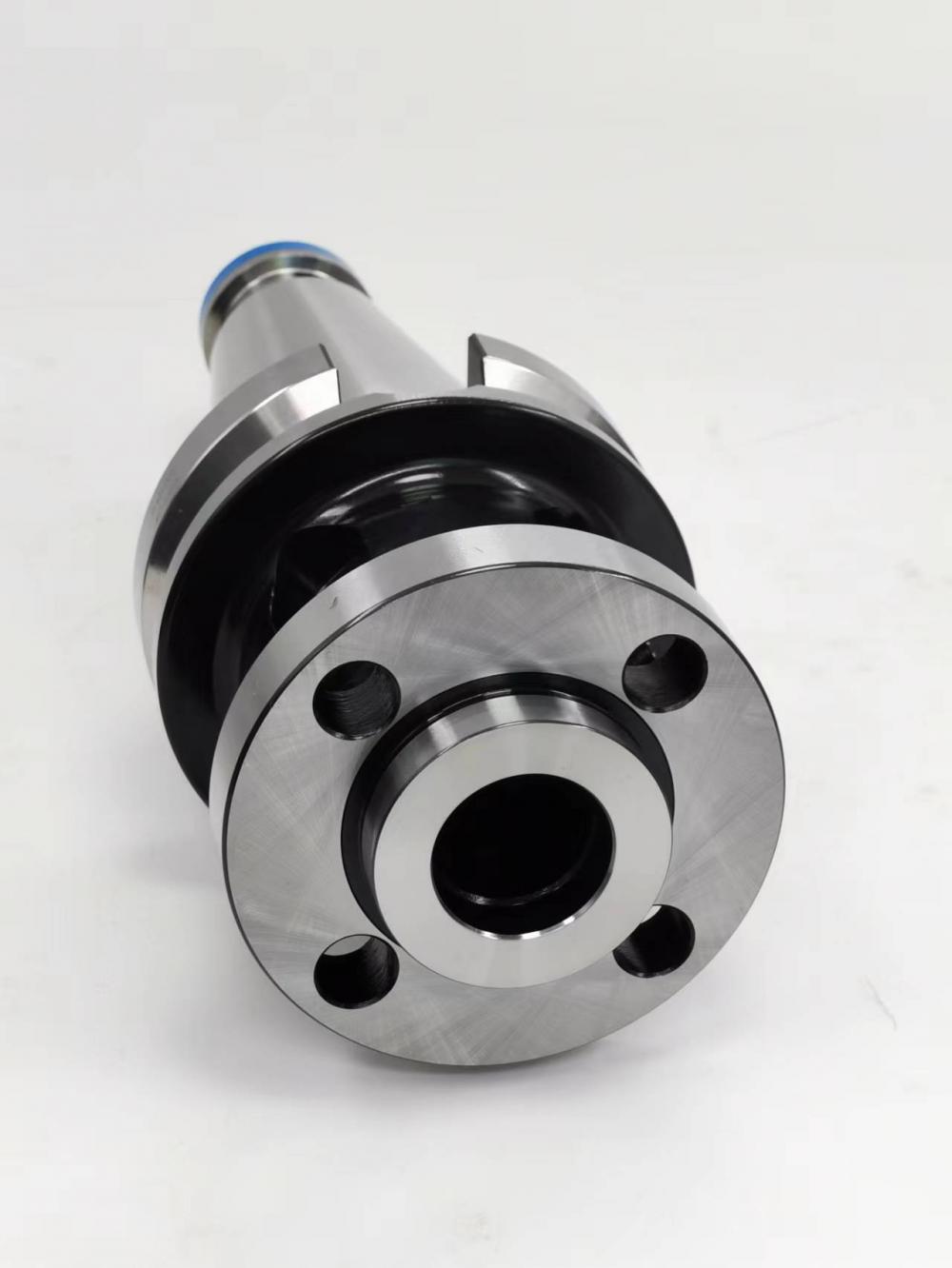

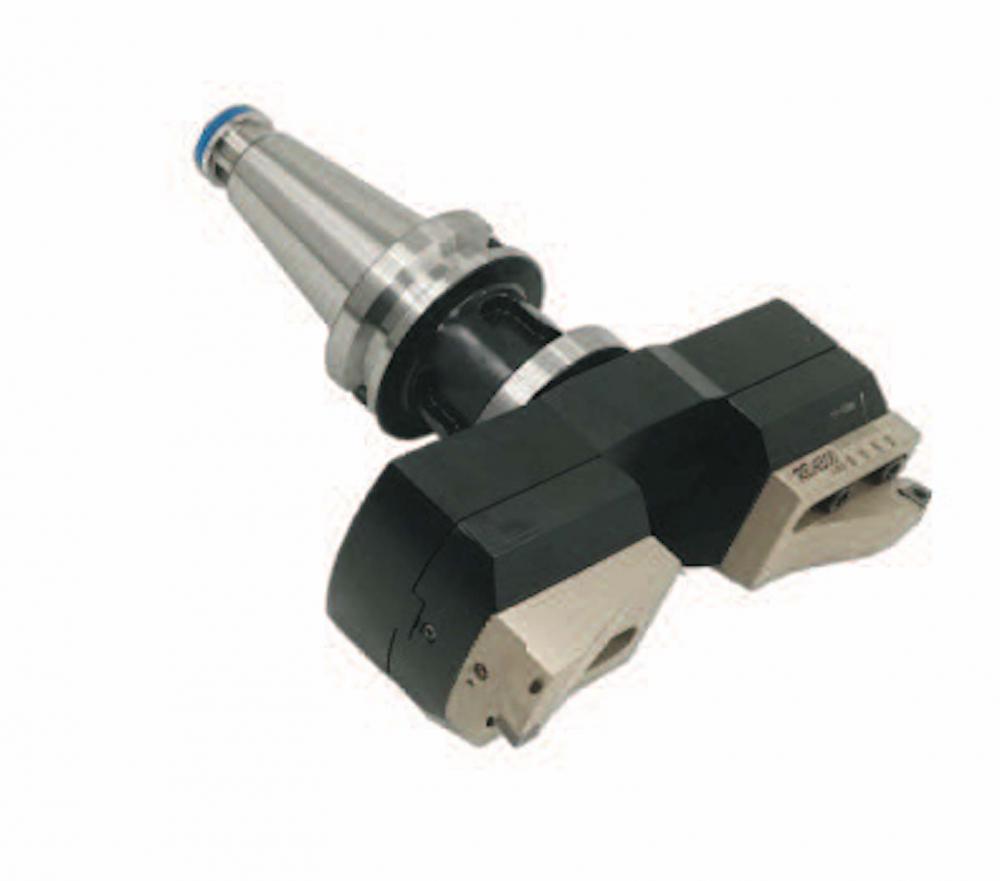

3. NT Boring Tool Post: NT boring tool posts are specialized accessories for CNC machine tools, primarily used for high-precision, high-efficiency hole machining.



4. HSK Boring Tool Holder: Boring heads can machine holes of various shapes and sizes, including straight holes, tapered holes, and curved holes.

5. MTA Boring Tool Post: MTA boring tool posts are tools specifically designed for machining centers, CNC machine tools, etc., primarily for hole machining of metallic or non-metallic materials.
