What is the purpose of a fine-tuning external diameter boring head, and how does it differ from a regular precision boring head?

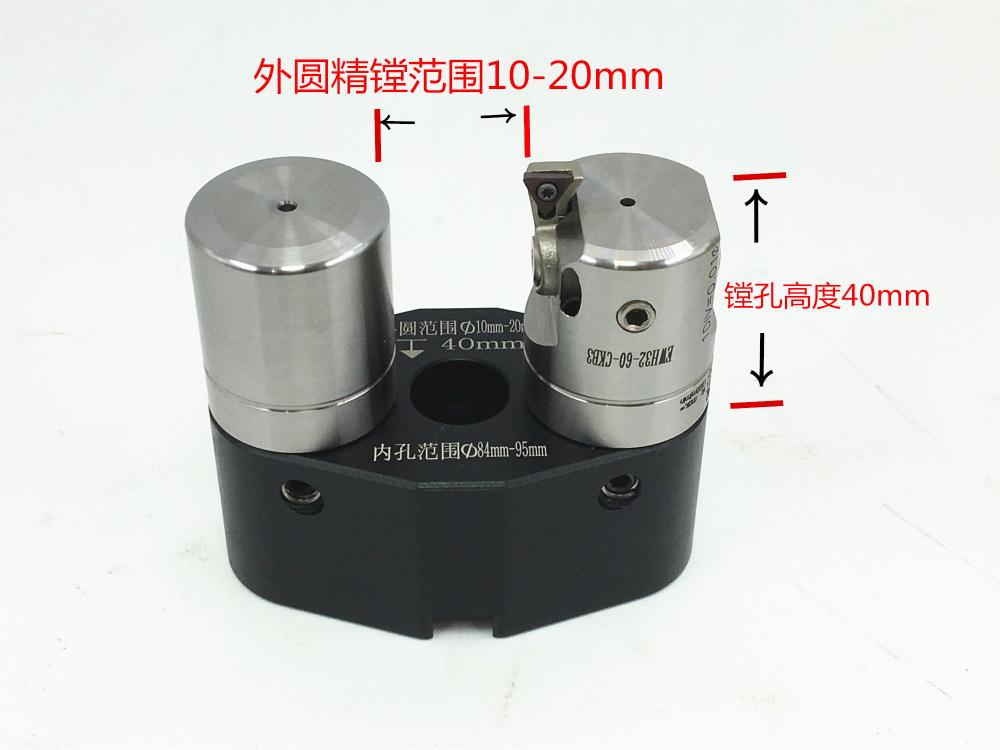

A fine-tuning external diameter boring head is a machining tool primarily used for precision machining of the outer diameter of a workpiece. Compared to a regular precision boring head, the biggest difference lies in its adjustment mechanism and precision control. Its main function is to achieve high-precision machining of the workpiece's outer diameter through fine adjustments, ensuring that the machined dimensions and surface quality meet requirements. Fine-tuning external diameter boring heads are commonly used in high-precision applications such as aerospace, automotive manufacturing, and mold processing.

Secondly, the structural design of a fine-tuning external diameter boring head is usually more complex, making it more adaptable to different workpieces. Because it allows for fine adjustments, it can be used to machine different workpieces without worrying about machining errors caused by improper tool settings. Common designs include adjustable tool holders, precision thread adjustment, and graduated markings. It is also a "high-precision upgrade" of ordinary precision boring heads, with core advantages concentrated in three dimensions: micron-level adjustment accuracy, batch processing consistency, and operational efficiency. It is particularly suitable for scenarios in modern manufacturing with stringent requirements for pr ecision and efficiency (automotive, aerospace, medical devices).



Core Applications:

High-precision dimensional correction: For the outer diameter allowance after rough machining (typically 0.1-0.3mm), the micro-adjustment mechanism controls the diameter tolerance to ±0.002~±0.01mm (IT6-IT7 grade), suitable for critical mating surfaces such as bearing seats, motor shafts, and hydraulic valve cores.

Surface quality optimization: When used with sharp coated inserts (such as TiAlN, PCD), it achieves a mirror finish with Ra0.2~0.8μm, avoiding subsequent polishing processes. Examples include the precision outer diameters of automotive gearbox output shafts and aerospace structural components.
